Design, fabrication, machining, assembly, testing and painting are all carried out in house, on one site. The capability of the plant is set out below so that a requirement can be assessed against it prior to enquiry.

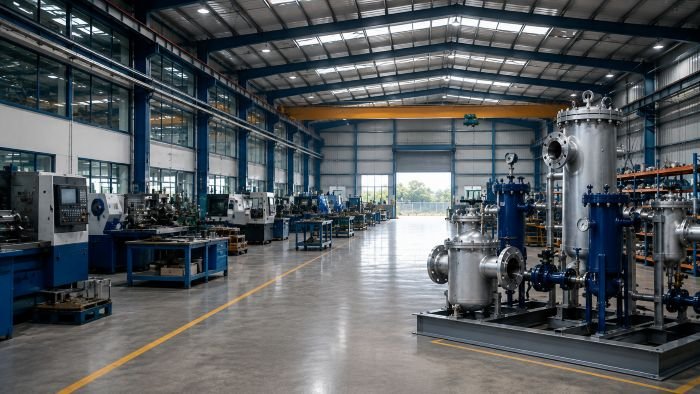

Photograph of the works
For use at the vendor registration stage, or to assess a requirement against the plant prior to enquiry.
| Scope of works | Design, fabrication, machining, assembly, testing and painting, all in house |
|---|---|
| Construction codes | ASME Sec VIII Div 1, IBR on request |
| Materials handled | Carbon steel, SS 304, SS 304L, SS 316, SS 316L |
| Welding processes | SMAW, GTAW, GMAW and SAW, selected against the material and thickness |
| Welder qualification | Welders qualified to ASME Sec IX |
| Machining | Turning, milling and drilling, carried out in house |
| Surface preparation | Shot blasting, chemical cleaning, pickling and passivation |
| Coating | Epoxy, polyurethane and primer systems, applied and checked for dry film thickness in house |
| In-house testing | Hydraulic, pneumatic, pressure drop, dimensional, dry film thickness |
| Non destructive examination | RT, UT, PT and MP |
Where a requirement falls outside the scope listed above, send us the specification and we will confirm against it directly.
